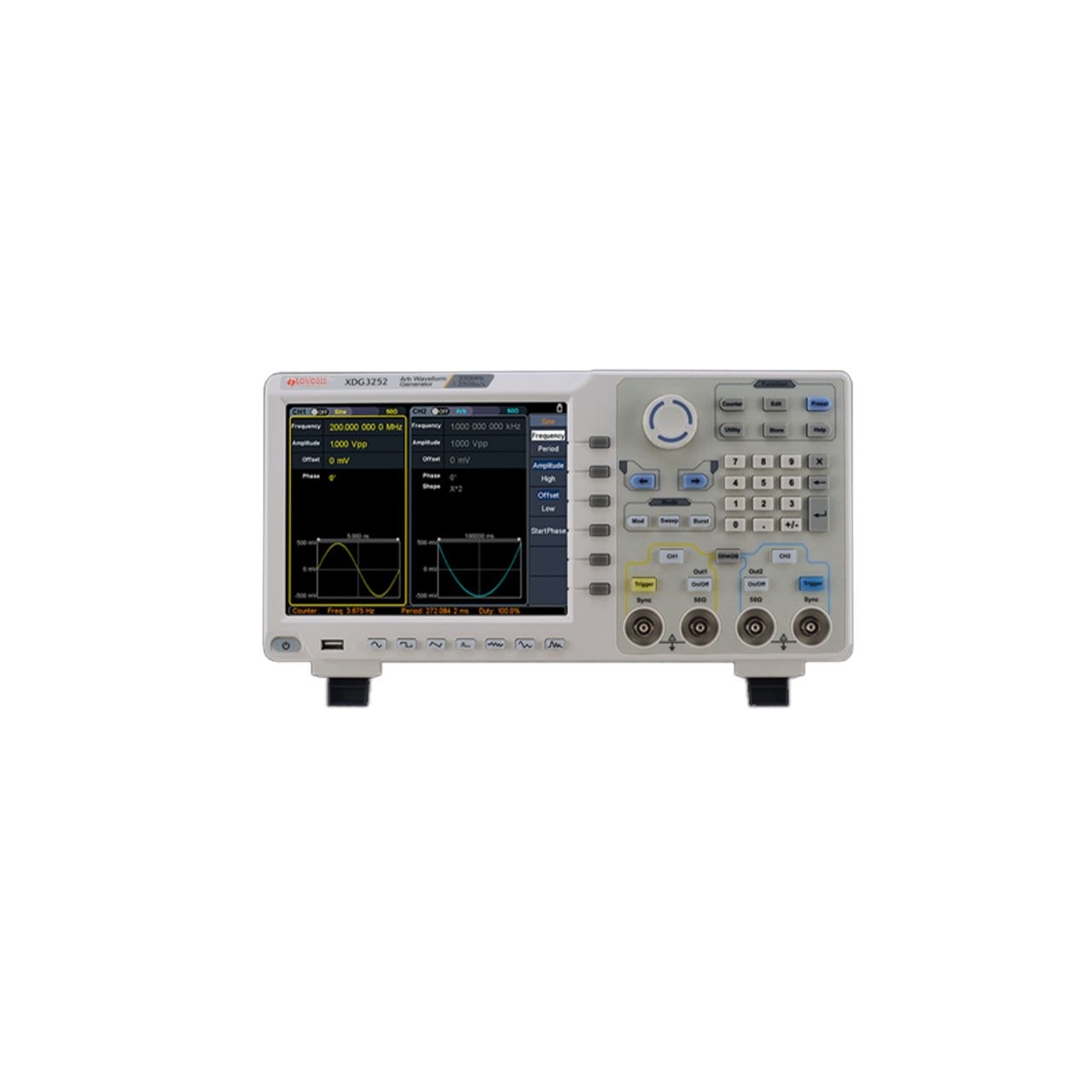

XDG3000 Series Waveform Generator
Description
A high-performance dual-channel arbitrary waveform generator utilizing advanced DDS technology. It offers exceptional precision with 1μHz frequency resolution and 14-bit vertical resolution across a wide frequency range (80-250MHz). The device features comprehensive waveform generation capabilities including 150 built-in arbitrary waveforms, extensive analog and digital modulation options, an integrated high-accuracy frequency counter, and user-friendly 8-inch touchscreen interface. Ideal for advanced testing, research, and development applications requiring precise signal generation and complex waveform modulation.
Key Features
Dual Channel Output (2-CH with equal performance)
Frequency Range: 80MHz - 250MHz (depending on model)
Sample Rate: 1.25 GSa/s
Advanced DDS Technology
Frequency Resolution: 1μHz
Vertical Resolution: 14 bits
Comprehensive Waveforms:
6 basic waveforms (Sine, Square, Pulse, Ramp, Noise, Harmonics)
150 built-in arbitrary waveforms
Rich Modulation Functions: AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, Sweep, and Burst
Built-in Frequency Counter: 100mHz - 200MHz range (7-digit resolution)
8-inch Multi-touch Screen (800 x 600 pixels)
Multiple Interfaces: USB Host/Device, LAN, SCPI, LabVIEW support
Sweep Function with linear/log modes
